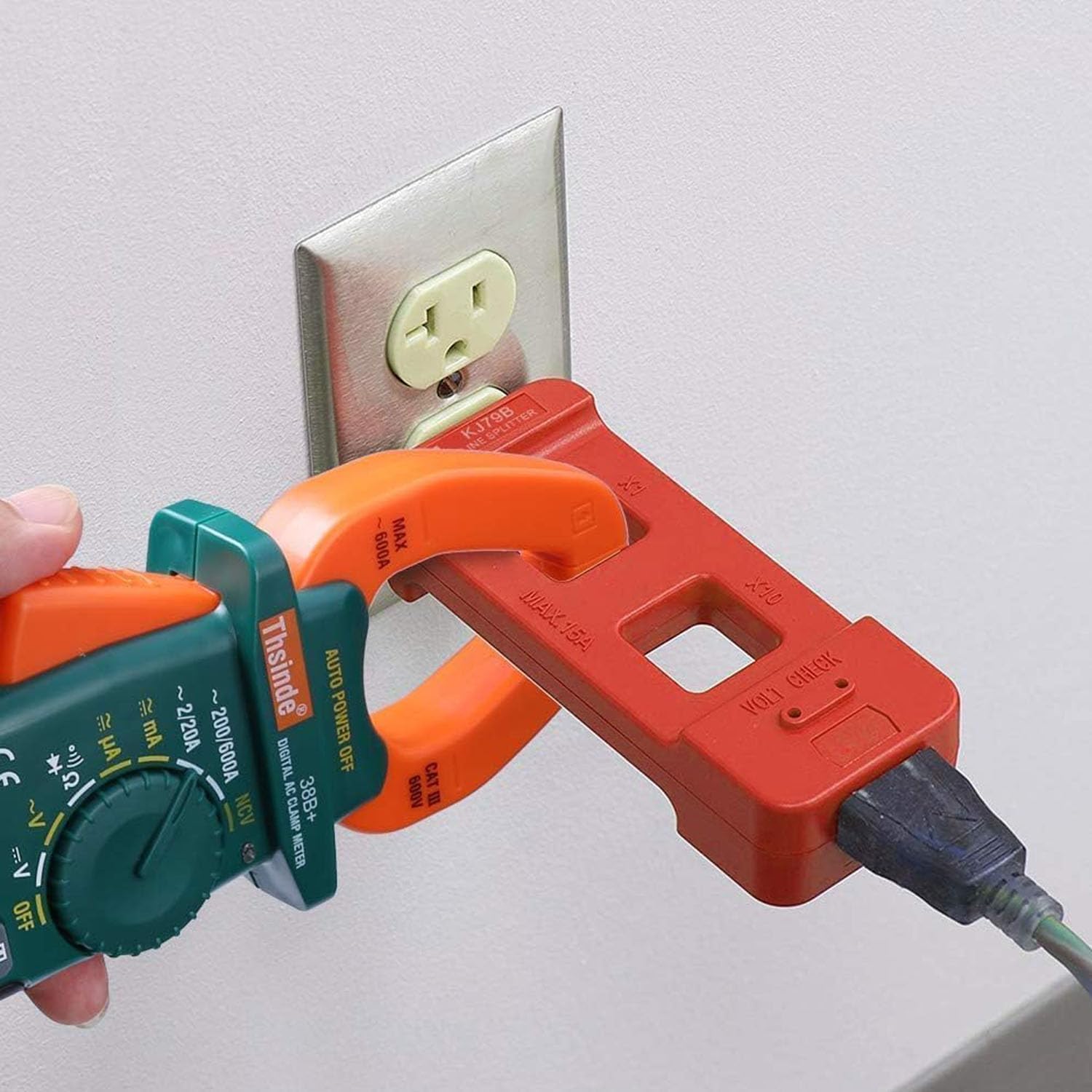

KJ79B AC Line Splitter, Line Splitter for Clamp Meter, 10x Measurement, 15A Max Current, for US Outlets(Black & 38B)

Wire Separator This line splitter is an auxiliary tol for clamp ammeter (herelimafter referred to as clamp meter). Generlly the Power cable of electrical equipment is insulating sheath. Where are many root cricuit conductor(such as phase wire, zero wire and ground wire). Only the clmap one of wires can obtain accurate current value when use Clamp meter to measure current. If clamp the sheathed Power cable directiy, it can not obtain the real loop current .That is due to the inside conductor will cancel each other out or stack cuased by different direction of current. The inside structure of line splitter will separate the wires into single through measurement window, and take the 10 times currentto measurement window. In that way, you can measure the single conductor inside the sheathed Power cable accurately and conveniently without destroy the Clamp meter with sheathed Power cable. Operete steps: 1. Insert the plug of thedevice under test into the jack of the line splitter, plug the AC line splitter into the receptacle. 2. Power on the device under test, close the Clamp-on jaws around either the X1 arm of the AC line splitter to obtain the actual current. 3. If the current is too smail to read,use the X10 positin,divide the meter reading by 10 to obtain the actual current. 4 .When measuring voltage,insert the multimeter test leads into the two Voltage Test jacks. Specification: Apply mains socket: single phase tow pole and earth Operating Voltage: AC1O0 ~ 230V 50/60 Hz Rated Current: Max 15A Two measuriment window: X1 and X10 window size: 25.4 X 25.4 mm ( 1X1 inch ) Operating: 0°C~40°C RH≤80%Dimension:L156 X W54 X H28 mm Weight: approw 85g

• This line splitter is an auxiliary tol for clamp ammeter (herelimafter referred to as clamp meter）
• The inside structure of line splitter will separate the wires into single through measurement window, and take the 10 times currentto measurement window
• You can measure the single conductor inside the sheathed Power cable accurately and conveniently without destroy the Clamp meter with sheathed Power cable.
• Olny the clmap one of wires can obtain accurate current value when use Clamp meter to measure current.
• Rated for 230V and MAX15A
