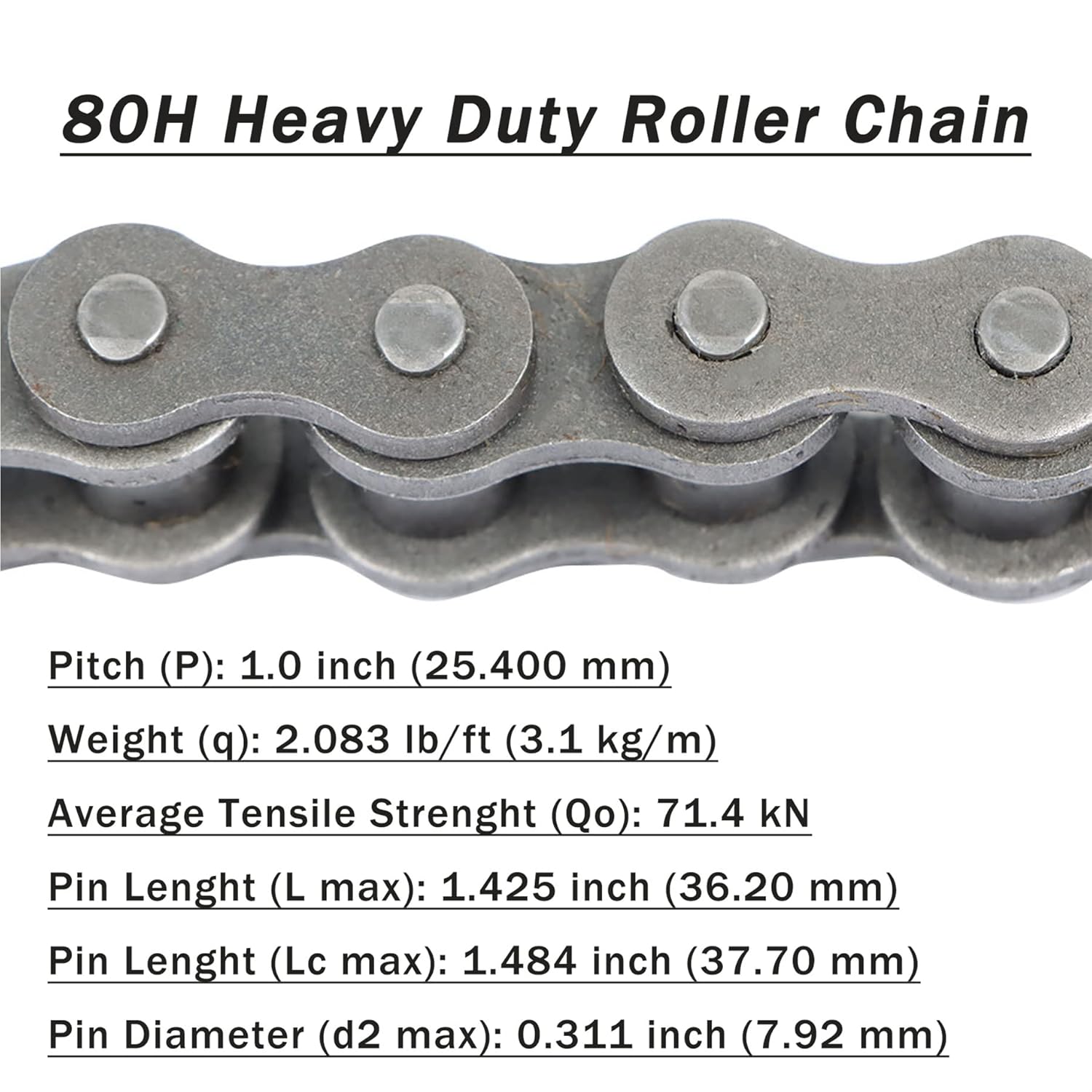

kimllier 80H Heavy Duty Roller Chain 10 Feet with 1 Connecting Links, Carbon Steel, 120 Links
Product details
| Management number | 220403737 | Release Date | 2026/05/03 | List Price | US$32.00 | Model Number | 220403737 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
80H Heavy Duty Roller Chain 10 Feet with 1 Connecting LinksMaterial: Carbon SteelPitch (P): 1.0 inch (25.400 mm)Weight (q): 2.083 lb/ft (3.1 kg/m)Average Tensile Strenght (Qo): 71.4 kNPin Lenght (L max): 1.425 inch (36.20 mm)Pin Lenght (Lc max): 1.484 inch (37.70 mm)Pin Diameter (d2 max): 0.311 inch (7.92 mm)Plate Thickness (T max): 0.157 inch (4.00 mm)Roller Diameter (d1 max): 0.625 inch (15.88 mm)Inner Plate Depth (h2 max): 0.944 inch (24.00 mm)Ultimate Tensile Strenght (Q min): 56.70/12886 kN/LBWidth Between Inner Plates (b1 min): 0.620 inch (15.75 mm)Package Includes: 1 x Connecting Links1 x 80H Heavy Duty Roller Chain
- Chain Length: 10 Feet
- ANSI Chain No.: 80H
- Process: Heat treatment during product processing ensures the toughness of all components, reduces wear during use and extends the service life of products
- Quality: The run-in of the roller chain after final assembly not only improves the endurance ability of the chain, but also effectively keep off the initial elongation of the chain
- Technical Support: Prestressed operation firmly holds chain components, evenly distributes workload, accurately determines chain length, and keep off rapid elongation during initial run-in
| Model | Does Not Apply |
|---|---|
| Brand Name | kimllier |
| Unit Count | 1.0 Count |
| Item Length | 10 Feet |
| Item Weight | 9100 Grams |
| Part Number | KM-1170850-232274-LR |
| Strand Type | Single |
| Manufacturer | kimllier |
| Load Capacity | 1.334E+4 lbf |
| Plate Thickness | 0.16 Inches |
| Roller Diameter | 0.63 Inches |
| Specification Met | Ansi |
