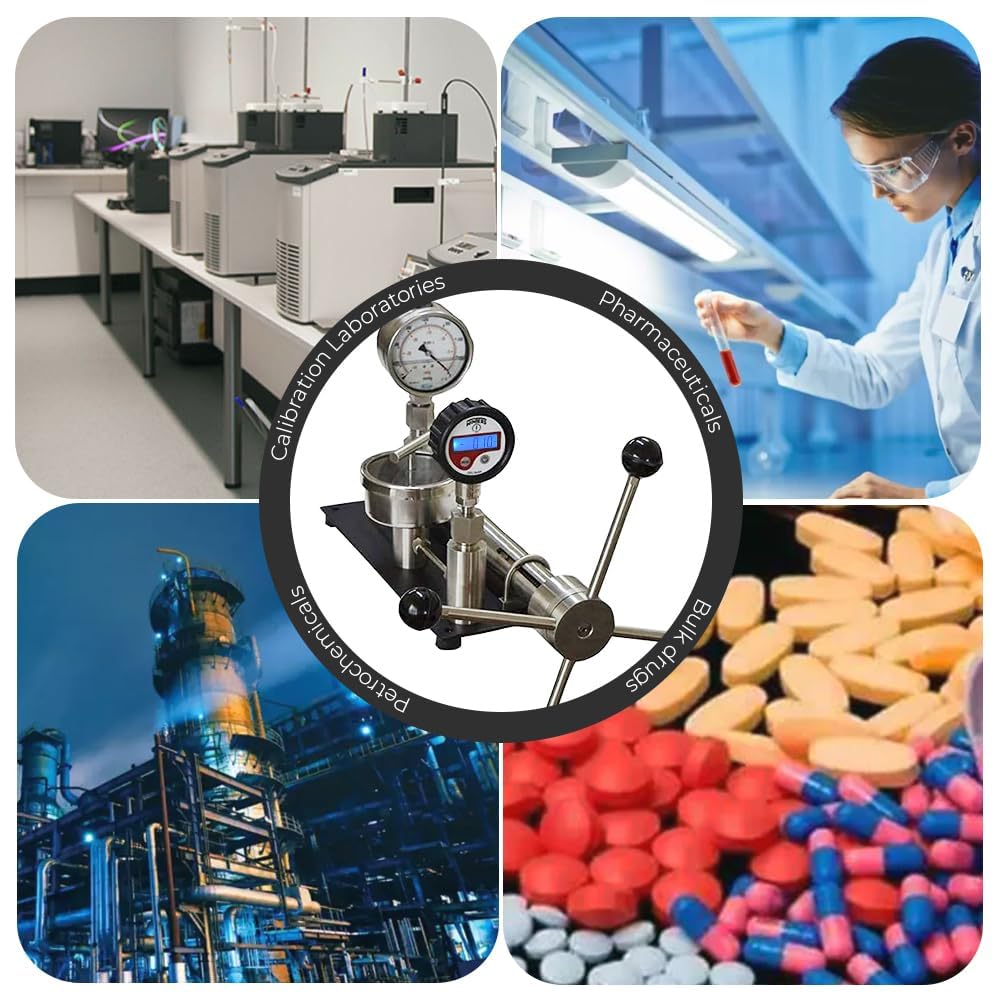

Bench Top Pressure and Vacuum Calibrator (Range: 0-400 kg/cm²) | Industrial Pressure calibrator for Calibration Laboratories, Pharmaceuticals, Petrochemicals | Model: AI-PCAL 1

Ace AI-PCAL1 Pressure Calibrator is used to generate the required pressure for calibrating the pressure instruments with a comparison method. In this method generally, pressure instruments are calibrated against a master instrument. The scope of reference calibration is to minimize the time required for calibrating a pressure instrument. Ace AI-PCAL1 Pressure Calibrator generates pressure through the hand-operated swirling handle. Reservoir for water/oil. All wetted parts are in Stainless Steel. Extensively used for calibration of Pressure Gauges, Pressure Transmitters, Pressure Transducers, Pressure Switches, etc.

• Features: Oil or Water Operated | User-Friendly Design | Light Weight for Site Calibration | Zero Leakage | Zero Maintenance for 5 Years | Bench Type Pressure Calibrator mainly use for Burst Pressure Testing of Components | Can be Used for Opening Pressure Testing of Components |
• Base Plate: Stainless Steel | Vacuum Range: 0.6 Bar(500 mBar/450 mm of Hg) | Pressure Range: 0-400 kg/cm² | Instrument Mounting Ports: 2 | Liquid Reservoir and Lock Needle: Provided for Water or Oil |
• Cylinder Assembly: Available | No. of Handles: 4 for Pressure Generation | Pressure Adapter Kit: 1/8” BSP (F) - 1 No., 1/4” BSP (F) - 2 Nos., 3/8” BSP (F) - 1 No., 1/2” BSP (F) - 1 No. | Seals: Spare Seals Provided | Point Puller: Provided |
• Supply Scope: 1 Unit of Pressure Calibrator (Range: 0-400 kg/cm²), Pressure Adapters Set, 4X Handles, Spare Seals, Pointer Puller and Instruction Manual | Note: MASTER PRESSURE GAUGE To be bought separately (Available in both Analog and Digital Versions Please Contact Store)
• Applications: Pressure Gauge calibrator, Pressure Transmitter Calibrator, Electronic pressure calibrator, Calibration Laboratories, Pharmaceuticals, Petrochemicals, Bulk drugs.
